|Type:||Air Cooled Industrial Chiller||Air Cooler:||Without|
|Refrigerant:||R404a||Suitable For:||Deli Display Freezer|
|Cooling Type:||Air Cooling||Cooling Capacity:||13350 W|
freezer condenser unit,
cold room condensing unit
5HP Copeland Water Cooling Refrigeration Condensing Unit For Deli Display Freezer
Product Features :
Marine compressed condensing unit are to provide refrigerant liquid for air conditioning system direct end device . The units has the features of new - design , easy - operation , stable - working , safety and convenient - maintaining etc . They ares widely used for all kinds of passenger ship , cargo ship , oil platform etc .
Outline of unit:
1 . It is mainly composed of compressor , condenser and control box etc .
2 . The cooling compressor is word famous brand .
3 . Key controlling parts are imported name brand .
4 . Condenser uses advanced HALL77 - 2 high efficiency heat transmitting pipe , it can protect ship swing from flow - stop .
5. Pressure test , vacuum test and running test have been done before leaving factory .
6 . Match proper direct end device to form a full system .
7 . Design , manufacture and inspection are in accordance with relative " CCS " .
Design and manufacture special specification of this series of product as per user ' s requirement
Air - Cooled Refrigeration Condensing Unit Technical parameters :

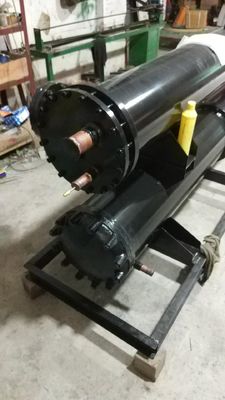

1 . Condenser Details :
|Form||Rated Water Flow ( m3 / h )||Connection Size|
|Scroll and tube Condenser||3.2||RC1 - 1- 1 / 2|
2 . Refrigerant Capacity Of Compressor :
a . Evaporating Temperature + 5 ℃
|Cooling Capacity||13350 W|
b. Evaporating Temperature－5 ℃
|Cooling Capacity||9980 W|
c . Evaporating Temperature - 12 ℃
|Cooling Capacity||7940 W|
3 . Coupling
|Tube Coupling||1 / 2 〞|
|Suction Coupling||7 / 8 〞|
4 . Overall Dimensions :
|Length ( L )||972 mm|
|Width ( B )||220 mm|
|Height ( H )||726 mm|
Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .
1 . Cooling capacity in the form is calculated when the ambient temperature is 40℃ .
2 . Configuration can be added according to customers' requirements .
