|Type:||Cold Storage Condensing Unit||Refrigerant:||R404a|
|Controller Way:||Temperature Controller||Compressor:||Customized|
|Warranty:||1 Year||Cooling Type:||Air Cooled|
Customized Semi - Hermetic Air Cooled Condensing Unit For Hotel Cold Room
Products Feature :
Exclusive use integration unit has more advantages such as easily installation , facility and so on . Ensure to use the cold room well owing to it ignore the factors like the level of profession and the limit of equipment . It will save the install cost , labor cost and material loss cost , reduce maintained cost and workload . Widely used in hotels , food , health , medicine , agriculture , chemical and so on .
Semi - Hermetic Air - Cooled Refrigeration Unit Technical parameters :

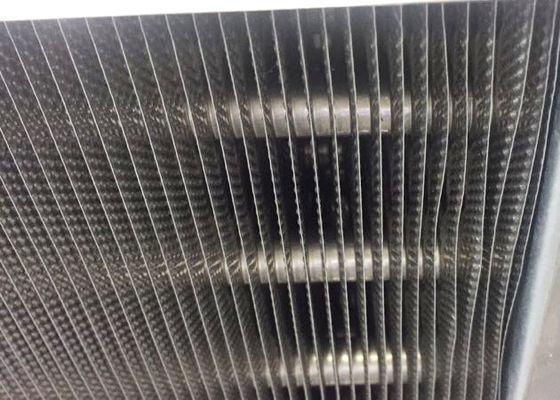

1 . Condenser Details :
|Qty Of Fan ( piece )||Air Volume ( m3 / h )||Power of Fan ( W )|
|2||2 * 1800||2 * 120|
2 . Refrigerant Capacity Of Compressor :
a. Evaporating Temperature－25 ℃
|Cooling Capacity||3630 W|
b . Evaporating Temperature - 35 ℃
|Cooling Capacity||1730 W|
3 . Coupling
|Tube Coupling||3 / 8 〞|
|Suction Coupling||7 / 8 〞|
4 . Overall Dimensions :
|Length ( L )||1010mm|
|Width ( B )||710mm|
|Height ( H )||520mm|
5 . Mounting Dimensions :
|Length ( D )||960mm|
|Width ( E )||420mm|
Standard configuration of units : compressor , condenser , liqid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .
1 . Cooling capacity in the form iscalculated when the ambiernt temperature is 32℃.
2 . Configuration can be added according to customers' requirements .
3 . When the compressor using refrigerant R22,and evaporating temperature lower than - 15 ℃ cylinder head fan must be installed . When the evaporating temperature below - 25 ℃ the compressor hydrojet system also must be installed .
4 . When the compressor using refrigerant R404a ,and evaporating temperature lower than - 20 ℃ cylinder head fan must be installed .
