Professional team , professional design and professional services !
Place of Origin: | China |
Brand Name: | Gaoxiang |
Certification: | CE , ISO |
Model Number: | GXN1.5CBFZD |
Minimum Order Quantity: | 1Pc |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Export Packing |
Delivery Time: | 20 ~ 25 Days |
Payment Terms: | L/C , T/T |
Supply Ability: | 500Pcs / Month |
Type: | 1.5 Hp Condensing Unit | Refrigerant: | R404a |
---|---|---|---|
Power Phase: | Single Phose | Usage: | Tomato Cold Room |
Expansion Valve: | Danfoss | Deforsting: | Automatic Deforsting |
High Light: | cold storage refrigeration units,copeland condensing unit |

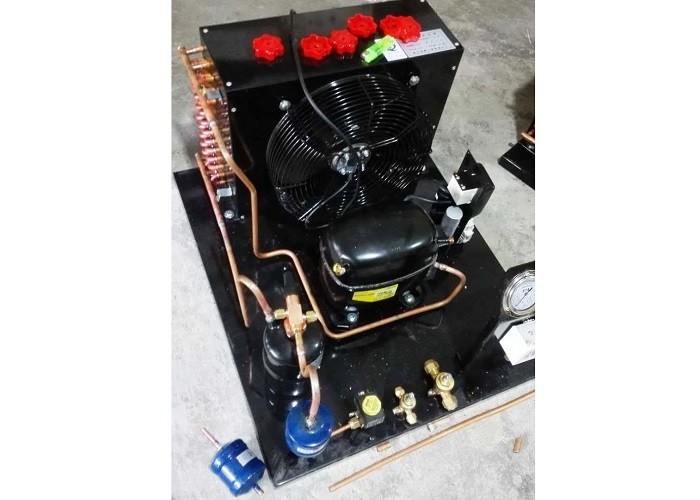

Customized Air Cooled Condensing Unit For Vegetable Chiller
Units Equipped With :
1 . Hermetic compressor
2 . External balance expanson valves
3 . High and low pressure control
4 . Automatic defrosting
5 . LCD automatic controller
6 . The negative refrigeration unit with liquid cooling system and condensing temperature regulating system
Products Feature :
Refrigeration equipment exclusively used in cold room , widely use in hotel , foodstuff , health , medicine , agriculture , chemical industry and so on .
Temperature arrangement :
High Temperature ( - 5 ℃ ~ + 5 ℃ )
Medium Temperature ( - 18 ℃ ~ - 20 ℃ )
Low Temperature( - 25 ℃ ~ - 30 ℃ )
Blast Freezer ( -25 ℃ ~ - 40 ℃ )
Air - Cooled Refrigeration Unit Technical parameters :
1 . Condenser Details :
Qty Of Fan ( piece ) | Air Volume ( m3 / h ) | Power of Fan ( W ) |
1 | 1 * 3200 | 1 * 60 |
2 . Refrigerant Capacity Of Compressor :
a. Evaporating Temperature - 5 ℃
Cooling Capacity : 3750 W
Power : 1990 W
b . Evaporating Temperature - 12 ℃
Cooling Capacity : 2920 W
Power : 1950 W
3 . Coupling
Tube Coupling | 3 / 8 〞 |
Suction Coupling | 5 / 8 〞 |
4 . Overall Dimensions :
Length ( L ) | 970mm |
Width ( B ) | 410mm |
Height ( H ) | 835mm |
5 . Mounting Dimensions :
Length ( D ) : 625mm
Width ( E ) : 380mm
