|Product Name:||Industrial Chiller||Compressor Form:||Semi - Hermetic|
|Usage:||Agricultural Cold Storage||Cooled Type:||Water Cooled|
|Condenser Form:||Shell & Tube Condenser||Cooling Capacity:||98000 W|

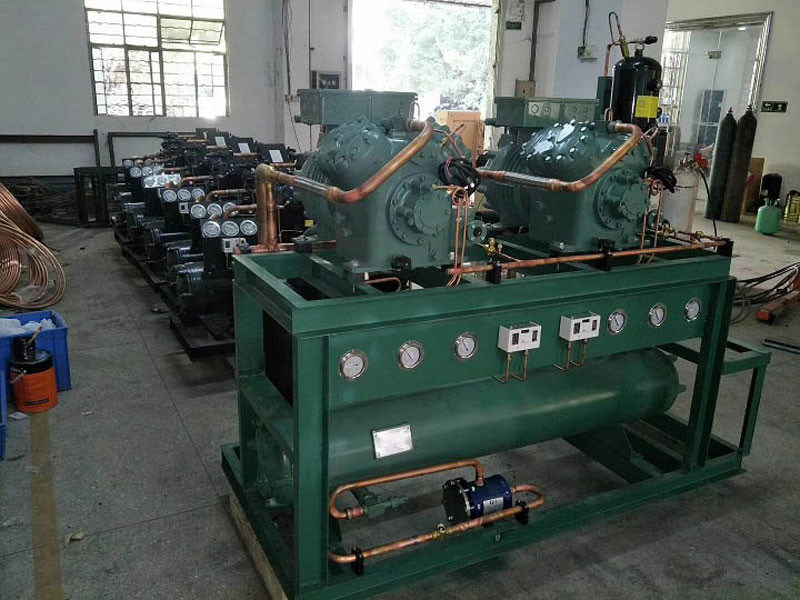

40HP Water Cooled Condensing Unit For Agricultural Cold Storage
Product Features :
Water cooled condensing unit is widely used in different temperature range, in cold storage applicable to the refrigeration room , refrigeration room , etc ...
1 . Famous brand compressor, high quality;
2 . Large frame unit , convenient installation and maintenance ;
3 . Cooling form : the need for cooling with evaporative condenser ;
4 . Refrigerant R404a available ;
5 . Specific parameters can refer to the following table .
Description Of Product :
This series of products for large refrigeration units , the selection of the world famous brand compressor , the pipe is made of brass and stainless steel tubes , all products are used in domestic or international well - known brand products .
The above components may be different for air cooling and water cooling products .
Hermetic Water - Cooled Condensing Unit Technical Parameters :
1 . Condenser Details :
Rated Water Flow ( m3 / h )
|Shell & Tube Condenser||17||
RC1 - 2 1 / 2
2 . Refrigerant Capacity Of Compressor :
a . Evaporating Temperature + 5 ℃
|Cooling Capacity||98000 W|
b. Evaporating Temperature - 5 ℃
|Cooling Capacity||66500 W|
c . Evaporating Temperature - 12 ℃
3 . Coupling
|Tube Coupling||1 - 1 / 8 〞|
|Suction Coupling||2 - 1 / 8 〞|
4 . Overall Dimensions :
Length ( L ) : 1440mm
Width ( B ) : 300mm
Height ( H ) : 883mm
5 . Mounting Dimensions :
Length ( D ) : 800mm
Width ( E ) : 200mm
