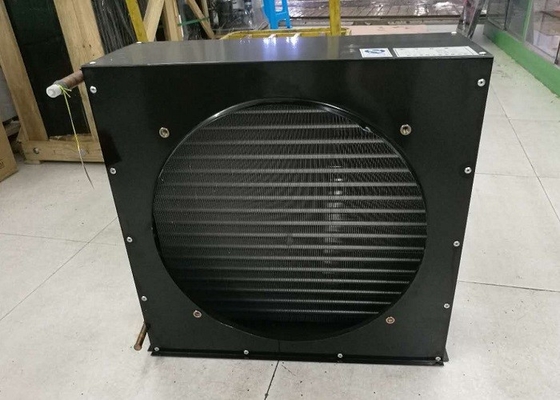

FNV Type Air Cooled Condenser For 8HP Refrigeration Condensing Unit
Condenser Description :
Air - cooled condenser is a kind of cooling equipment that is used in the cooling equipment of Foung . There are mainly four types of air - cooled condensers produced by our company : FNH type , FNV type , FNVB type , GP type , FNH type , side blowing type , FNV type , FNVB type , FNU type and GP type .
Products Feature :
● High - quality steel shell , the surface spray , corrosion - resistant , beautiful appearance ;

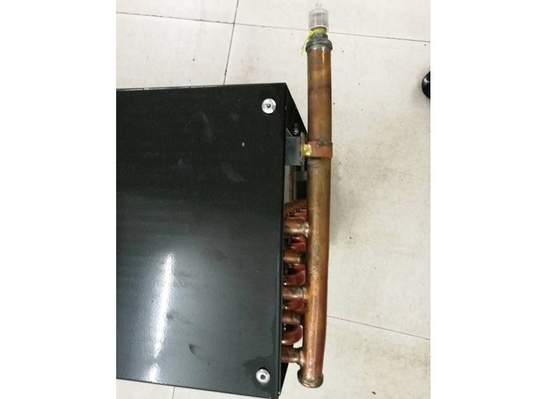

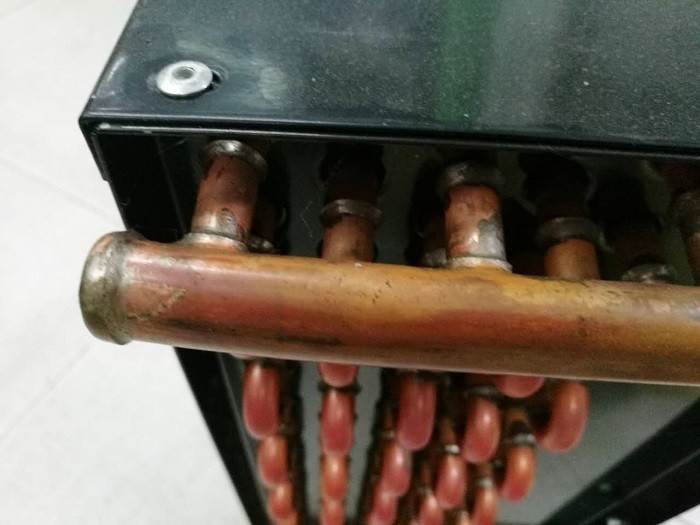

● The coil adopts the copper tube mis - arranging way , utilizes the mechanical expansion tube to make the copper tube and the fins closely combine , and the heat exchange effect is good ;
● products after 2.5MPa tightness test and system sewage treatment ;
● Applicable to R22 , R134a , R404a , R407c and other refrigerants ;
● FNV - type condenser with large windward side , good heat transfer , are equipped with low - noise motor ;
● High - performance heat exchange coil , clean and dry ;
● Adopt FZL series axial flow fan , air volume, low noise , low power consumption ;
● shell with high - quality galvanized sheet , spray treatment , corrosion - resistant durable ;
● Special - purpose products , please contact the company ' s sales department .
Technical Parameters :
| Technical parameters of industrial condensers |
| Model |
Heat -
exchange △t = 15kw
|
Heat-
exchange area
|
fan |
Diameter of inlet tube |
Diameter of outlet tube |
Dimensions |
Mounting dimensions |
| Quantity |
Diameter of fan |
Air volume |
Power |
Voltage |
| W |
m2 |
N |
φmm |
m3/h |
W |
V |
Φ mm |
Φ mm |
L |
B |
H |
D |
E |
| FNV － 26 / 72 |
25890 |
72 |
1 |
4D550 |
8487 |
600 |
380 |
22 |
16 |
950 |
900 |
880 |
870 |
700 |
| FNV － 31 / 87 |
31320 |
87 |
1 |
4D600 |
10820 |
780 |
380 |
25 |
16 |
1100 |
1000 |
880 |
1020 |
700 |
| FNV － 40 / 110 |
39800 |
110 |
2 |
4D500 |
2×6246 |
2×450 |
380 |
25 |
16 |
1400 |
900 |
880 |
1320 |
700 |
| FNV － 47 / 130 |
46800 |
130 |
2 |
4D550 |
2×8487 |
2×600 |
380 |
28 |
19 |
1550 |
900 |
880 |
1470 |
700 |
| FNV － 56 / 155 |
55800 |
155 |
2 |
4D500 |
2×8487 |
2×600 |
380 |
28 |
19 |
1600 |
1000 |
980 |
1520 |
800 |
| FNV － 67 / 185 |
66700 |
185 |
2 |
4D600 |
2×12500 |
2×780 |
380 |
28 |
22 |
1700 |
1000 |
1080 |
1620 |
800 |
| FNV － 76 / 210 |
75680 |
210 |
2 |
4D630 |
2×13000 |
2×800 |
380 |
32 |
22 |
1750 |
1000 |
1180 |
1670 |
800 |
| FNV － 86 / 240 |
86420 |
240 |
2 |
φ700 |
2×15000 |
2×750 |
380 |
32 |
22 |
1900 |
1175 |
1260 |
1820 |
975 |
| FNV － 108 / 300 |
10800 |
300 |
2 |
φ750 |
2×19000 |
2×1100 |
380 |
35 |
25 |
2250 |
1175 |
1260 |
2170 |
975 |
| FNV － 115 / 320 |
11520 |
320 |
2 |
φ750 |
2×19000 |
2×1100 |
380 |
38 |
25 |
2350 |
1175 |
1260 |
2270 |
975 |
| FNV － 130 / 360 |
129600 |
360 |
3 |
φ650 |
3×13200 |
3×550 |
380 |
42 |
28 |
2650 |
1175 |
1260 |
2570 |
975 |
| FNV － 144 / 400 |
144000 |
400 |
3 |
φ700 |
3×15000 |
3×750 |
380 |
42 |
28 |
2950 |
1175 |
1260 |
2870 |
975 |
| FNV － 173 / 480 |
172800 |
480 |
3 |
φ750 |
3×19000 |
3×1100 |
380 |
54 |
28 |
3400 |
1175 |
1260 |
3320 |
975 |
Note : four - pole external rotor fans shall be used for the heat - exchange area less than 210 ㎡ . And six - pole axial flow fans shall be used for the heat - exchange area more than 240 ㎡ .
