Professional team , professional design and professional services !
Product Details:
Payment & Shipping Terms:
|
Products Name: | Cold Storage Refrigeration Units | Refrigerant: | R404a |
---|---|---|---|
Dry Filter: | ALCO | Compressor: | Bitzer |
Electric Controler: | Elitech | HS Code: | 841869 |
High Light: | cold storage refrigeration units,compressor condenser unit |

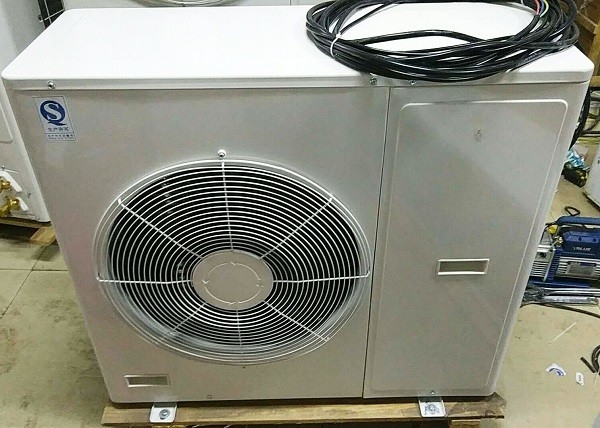

5HP Refrigeration Condensing Unites With Air Cooled Condenser
Usage :
Air cooled condenser for refrigeration condensing unites is a suitable for a variety of cold storage cooling equipment , it has the advantages of compact structure , light weight , no occupation of the use of cold storage area , high efficiency , the cold storage food rapid cooling , greatly improving the storage of food freshness .
Product description:
1 . With Bitzer series semi-hermetic compressor compressor

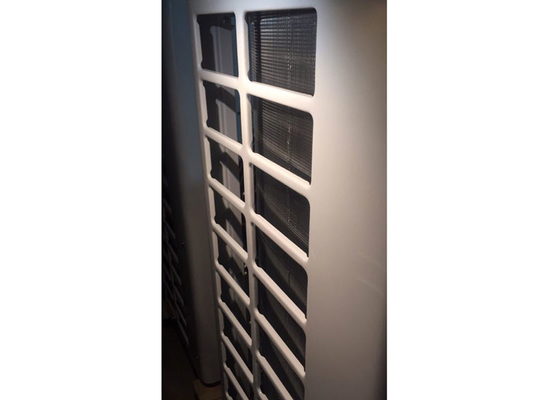

2 . With copper tube V type air cooled condenser
3 . Air cooled condensing units with low noise and high efficient external rotor fan motor .
4 . Small space occupying, convenient for packing and transportation ;
5 . With high quality China made or imported components .
6 . Beautiful and durable appearance design , anti - collision and rain proof ;
7 . Complete models with wide temperatures using , and can be used widely for storage ,
cooling , ice-making , freezing , etc .
Air - Cooled Refrigeration Unit Technical parameters :
Model of unit | GXN5CBFZD | ||
Applicable Temp. | + 5 ℃ ~ - 20 ℃ | ||
Refrigerant | R404A | ||
Power supply | 380V 50Hz | ||
Cooling capacity & Power | Evaporating Temperature - 5 ℃ | Cooling Capacity | 9342 |
Power | 4596 | ||
Evaporating Temperature - 10 ℃ | Cooling Capacity | 7115 | |
Power | 3570 | ||
Evaporating Temperature - 15 ℃ | Cooling Capacity | 5913 | |
Power | 3813 | ||
Cupling | Discharge Cupling | 1 / 2 | |
Suction Coupling | 1 | ||
Discharge Cupling | 1 / 2 | ||
Suction Coupling | 1 | ||
Overall Dimensions | Length ( A ) mm | 1010 | |
Width ( B ) mm | 710 | ||
Height ( C ) mm | 570 |
