Professional team , professional design and professional services !
Payment & Shipping Terms:
|Products Name:||Low Temperature Condensing Unit||Refrigerant:||R404a , R22|
|Electric Controler:||Elitech||Cooling Type:||Air Cooled|
cold storage refrigeration units,
copeland condensing unit

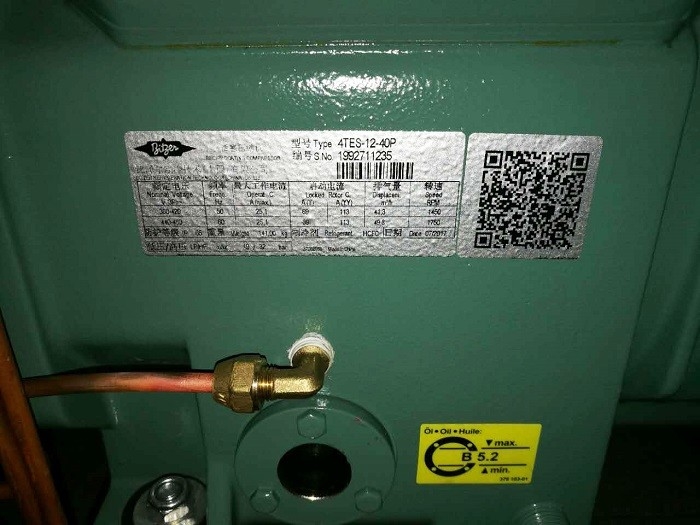

4HP Low Temp . Air Cooled Condensing Units With Semi - Hermetic Compressor
Products Feature :
The condensing unit system widely be used for cold storage room for meat , fruit , fish , medical room , hospital , etc . Room temp. could reach 60 celsius degree , -25 ~ - 40 celsius degree , - 15 ~ - 30 celsius degree , 5 ~ - 5 celsius degree , 0 ~ 5 celsius degree , etc .
1 . Bitzer air - cooled compressor racks :The Products feature by their structures of semi - hermetic Bitzer compressors paralleled together to form one intergrated systems .
2 . Bitzer aircooled compressor racks : The discharge pipes , suction pipes are one shared by all the
compressors for each units .
3 . The paralleled system is simpler for intergrated control and capacity adjustment .
Semi - Hermetic Air - Cooled Refrigeration Unit Technical parameters :
|Output ( W )||6470|
|Input ( Kw )||3390|
|Power Voltage||380V 50Hz|
|Current ( A )||9.5|
|Refrigerant ( Kg )||3,7|
|Cold Room Volume ( m3 )||40~60|
|External Dimension ( mm )||1010 * 710 * 570|
