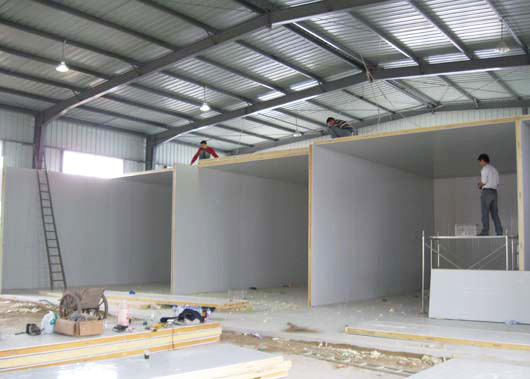

Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction

Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction

  • Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction
  • Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction
  • Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction
  • Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction
Restaurant Commercial Cool Storage Room With Compressor / Cold Room Construction
Product Details:
Place of Origin: China
Brand Name: XBY
Certification: CE , ISO
Model Number: CD22
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Set / Month
Contact Now
Detailed Product Description
Product Name: Freezer Room Evaporator: Air Cooled
Application: Vegetable / Fruit Warranty: 1 Year
Unit Type: Spilit Unit Structure: Assemble
High Light:

modular freezer room

,

cold room floor construction





Restaurant Commercial Cold Storage Room With Customized Compressor



Temperature Table For Reference :

Cold storage goods Temperature range
Processing room 10 ℃
Fruit , vegetable , dry food 0 ℃ ~ - 5 ℃
Medicine , cake , pastry , chemical material 0 ℃ ~ - 5 ℃
Ice storage room - 5 ℃ ~ - 10 ℃
Fish , meat storage - 18 ℃ ~ - 25 ℃
Deep freezer - 25 ℃ ~ - 35 ℃

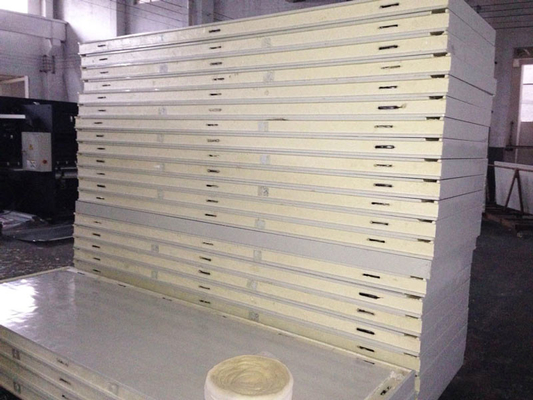

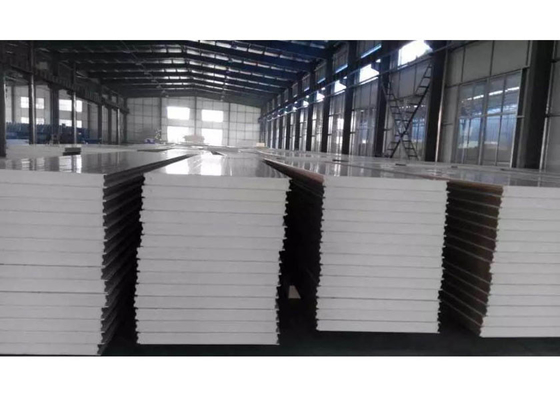

Panels Information :

Office Foam panel 50mm thickness
Processing room 10 ℃ 50mm / 75mm PU
5 ℃ 75mm / 100mm PU
- 18 ℃ 100mm / 150mm PU
- 25 ℃ / - 35 ℃ 150mm / 200mm PU
Panel steel cover SS , GI , aluminum etc .



Panel thickness : 100mm , 150mm



Feature Of Modular Cold Room :

  • Temperature range : - 40 ~ + 15 ℃ are all available .
  • Size : Customization .
  • Functions : Fresh - keeping , Freezing , quick - freezing . Fire - proof . Air-conditioning are all available..
  • Fully automatic control system .



Components :

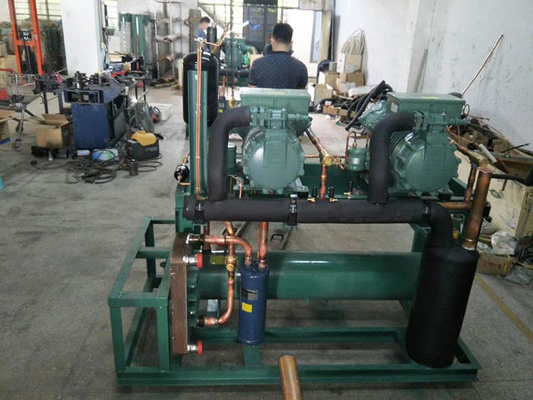

  1. Condensing unit: , Copeland
  2. Evaporator : Air - cooler .
  3. Insulation panel : Polyurethane ( Density is up to 40 ~ 46kg / m3 )
  4. Other accessories : World - famous brands, like Danfoss , castle , every control .

Tag:

modular freezer room,

cold room floor construction,

industrial cold room
