Professional team , professional design and professional services !
Place of Origin: | China |
Brand Name: | Gaoxiang |
Certification: | ISO / CE |
Model Number: | GXN2CQFZG |
Minimum Order Quantity: | 1 Pc |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Export Packing |
Delivery Time: | 20 ~ 30 Days |
Payment Terms: | L/C , T/T |
Supply Ability: | 500 Pcs / Month |
Type: | Cold Storage Refrigeration Units | Refrigerant: | R404a |
---|---|---|---|
Voltage: | 380V | Applicable Temperature: | - 5 ~ - 20 ℃ |
Material: | Color Steel | Warranty: | 1 Year |
High Light: | freezer condenser unit,cold room condensing unit |

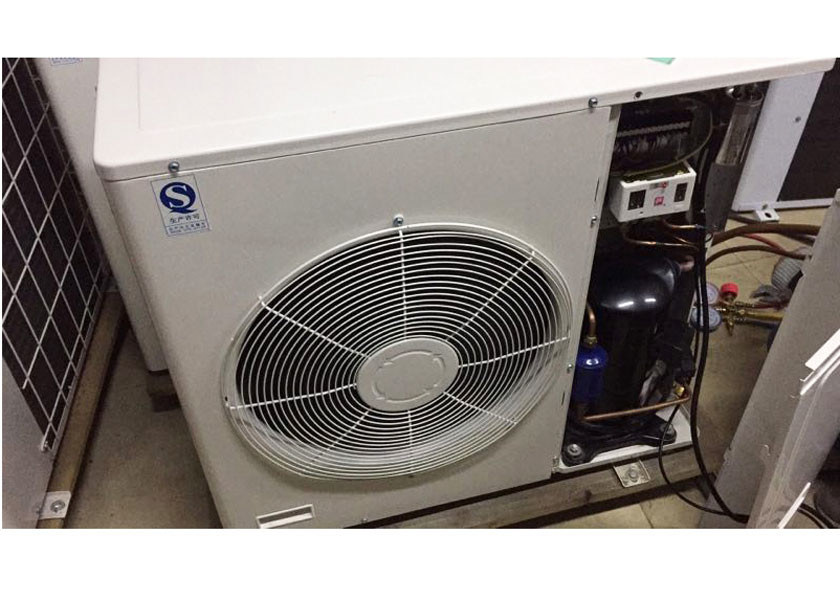

2HP Air - Cooled Refrigeration Condensing Unit For Vegetable Cold Storage
Product Features :
1 . Copeland Scroll Series compressors are chosen since they are equipped .
2 . Adopt high efficiency shell and tube Air - cooled condenser , boast high efficiency of heat exchange and long service life .
Air - Cooled Refrigeration Condensing Unit Technical parameters :
1 . Condenser Details :
Qty Of Fan ( piece ) |
Air Volume ( m3 / h ) |
Power of Fan ( W ) |
1 | 1 * 1800 | 1 * 90 |
2 . Refrigerant Capacity Of Compressor :
a . Evaporating Temperature-5 ℃
Cooling Capacity |
4230 W |
Power |
1860 W |
b. Evaporating Temperature-15 ℃
Cooling Capacity | 2880 W |
Power | 1840 W |
c . Evaporating Temperature - 20 ℃
Cooling Capacity | 2030 W |
Power | 1840 W |
3 . Coupling
Tube Coupling |
3 / 8 〞 |
Suction Coupling |
3 / 4 〞 |
4 . Overall Dimensions :
Length ( L ) |
600mm |
Width ( B ) |
700mm |
Height ( H ) | 520mm |
Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .
Note:
1 . Cooling capacity in the form is calculated when the ambient temperature is 32℃ .
2 . Configuration can be added according to customers requirements .
