Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms

Good quality Air Cooled Condensing Unit for sales
Good quality Air Cooled Condensing Unit for sales
He that can have patience, can have what he will !

—— Marry

People who cannot find time for recreation are obliged sooner or later to find time for illness !

—— John

The best preparation for good work tomorrow is to do good work today !

—— Elth

God helps those who help themselves !

—— Jack

Victory won't come to me unleI go to it !

—— Jerry

I'm Online Chat Now

Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms

China Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms supplier
Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms supplier Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms supplier Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms supplier

Large Image :  Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms

Product Details:

Place of Origin: China
Brand Name: Xin Xing Yuan
Certification: CE / ISO
Model Number: 800 * 1800 mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: About 15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 20 Pcs / Day
Contact Now
Detailed Product Description
Product Name: Hinge Door Material: PU , Stainess Steel
Purpose: Hospital Cold Storage Density: 38 ~ 42 Kg / M³
Size: Customized Thinkness: 100mm

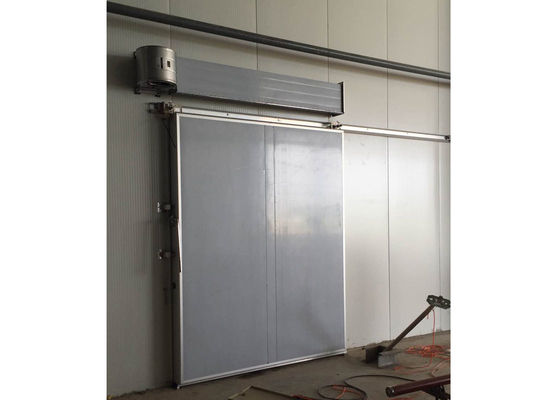

100mm Insulated Cold Room Sliding Doors For Fish Manufacturers





Sliding Doors Instructions :



Unique range of sliding doors for chiller and freezer applications 0℃ to -40 ℃. advailble in two models and four options . The doorblades are constructed from series of interchangeable panels framed in heavy gauge stainless steel edge profiles .





Products Features :



1 . Fully assambled for installation

Simple to install , easy to adjust and commission .



2 . In kit form for easy site assembly and installation

Cheaper to transport and easier to store safely on site



3 . In kit form without insulation panels

More competive as panels can be supplied from site off - cuts .



4 . Track furniture and automation only

For retro fit or clients who prefer to manufacture their own doorblades .





Products Specifications :



1 . Light to medium single leaf chiller and freezer sliding doors



Rail system Type M5 hermetic with stainless steel hangers and nylon bearings
Max Size

2400mm * 2600mm high , weight : about 250kg

Doorblade 1.5mm stainless steel edge frame with high density injected polyurethane panels 80 , 100 , 125 or 150 thick
Finishes White coated polyester , food safe or stainless steel
Gaskets Tough rubber tubular gasket for perfect sealing
Handles Pull handle and flush grip stainless steel lever handle for doors over 1500mm wide
Frames

100mm * 20mm 1.5mm stainless steel face mounted optional wrap round frames

optional stainless sheel wrap round fames

Heating 240V frame heating with optional heated floor cill





2 . Heavy duty single / bi - parting chiller and single leaf freezer sliding doors



Rail system Type M7 hermetic with stainless steel hangers and nylon bearings
Max Size 40000mm * 4500mm high , weight : about 400kg
Doorblade 2mm stainless steel edge frame with high density injected polyurethane panels 80 , 100 , 125 or 150 thick
Finishes White coated polyester , food safe or stainless steel
Gaskets Tough rubber tubular gasket for perfect sealing
Handles Pull handle and flush grip stainless steel lever handle for doors over 1500mm wide
Frames

150mm * 45mm white coated face mounted polyurethane injected

optional wrap stainless sheel round fames

Heating 240V frame heating with optional heated floor cill
