Air Cooled 3 HP Refrigeration Condensing Unit With Copeland Compressor

Air Cooled 3 HP Refrigeration Condensing Unit With Copeland Compressor

  • Air Cooled 3 HP Refrigeration Condensing Unit With Copeland Compressor
  • Air Cooled 3 HP Refrigeration Condensing Unit With Copeland Compressor
  • Air Cooled 3 HP Refrigeration Condensing Unit With Copeland Compressor
Air Cooled 3 HP Refrigeration Condensing Unit With Copeland Compressor
Product Details:
Place of Origin: China
Brand Name: Gaoxiang
Certification: ISO / CE
Model Number: GXN3CQFZG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 20 ~ 30 Days
Payment Terms: L/C , T/T
Supply Ability: 100Pcs / Month
Contact Now
Detailed Product Description
Type: Cold Storage Refrigeration Units Refrigerant: R404a
Power Suppler: 380V / 50 Hz Material: Painted Galvanized Steel Shelf
OEM: Acceptable Cooling Capacity: 3580 W
High Light:

freezer condenser unit

,

cold room condensing unit

Air - Cooled Refrigeration Condensing Unit With Copeland Compressor For Cold Room





Product Features :



1 . Using Copper pipe aluminum condenser or high efficient shell condenser ,
Quick heat exchange with long time .
2 . Using external rotor air cooler ( except FNV type ) , Low noise , high efficiency ,
And good appearance .
3 . Using domestic and foreign parts with good quality , complete specifications with
Good characteristic .
4 . Matching with water - proof Junction Box , all the controlling parts are juncted in it ,
It is convenient .
5 . Complete models with wide temperatures using , and can be used widely for storage ,
Cooling , ice-making , freezing , etc .



Air - Cooled Refrigeration Condensing Unit Technical Parameters :



1 .  Condenser Details :

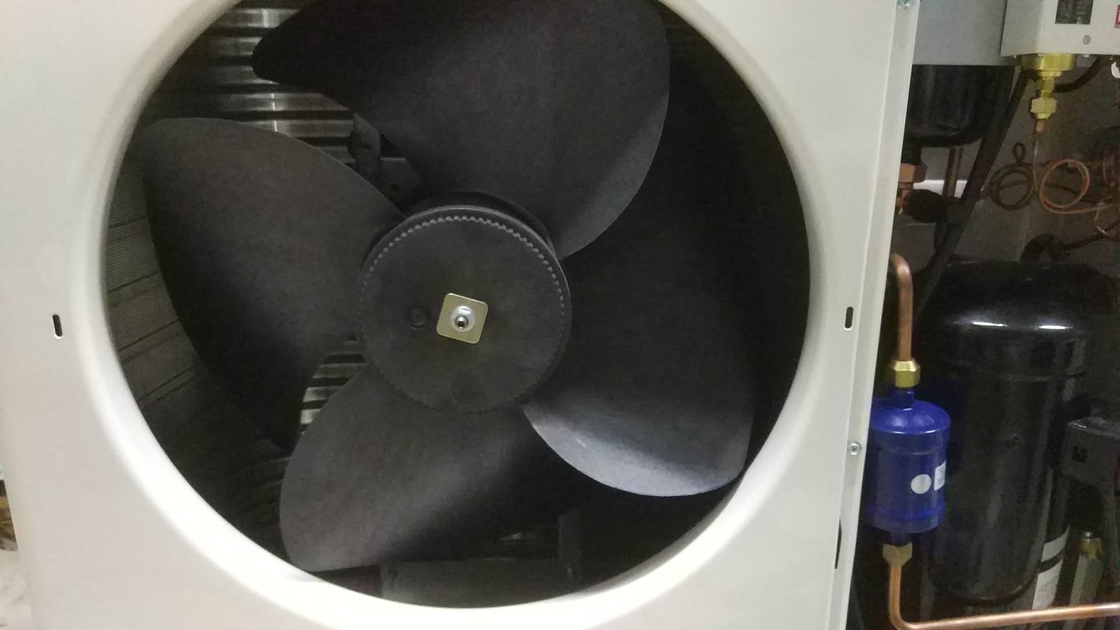

Qty Of Fan ( piece )

Air Volume  ( m3 / h )

Power of Fan ( W )

1 1 * 3000 1 * 120



2 . Refrigerant Capacity Of Compressor :

a . Evaporating Temperature-5 ℃

Cooling Capacity

5820 W

Power

2810 W



b. Evaporating Temperature-15 ℃

Cooling Capacity 3580 W
Power 2900 W



c . Evaporating Temperature - 20 ℃

Cooling Capacity 3370 W
Power 2560 W



3 . Coupling

Tube Coupling

3 / 8 〞

Suction Coupling

3 / 4 〞



4 . Overall Dimensions :

Length ( L )

600mm

Width ( B )

700mm
Height ( H ) 550mm



Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .



Note:

1 . Cooling capacity in the form is calculated when the ambient temperature is 32℃ .

2 . Configuration can be added according to customers requirements .
