Professional team , professional design and professional services !
Place of Origin: | China |
Brand Name: | Gaoxiang |
Certification: | CE , ISO |
Model Number: | GXN10CBFZG |
Minimum Order Quantity: | 1 Pc |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Export Packing |
Delivery Time: | 20 ~ 30 Days |
Payment Terms: | L/C , T/T |
Supply Ability: | 200 Pcs / Month |
Type: | Cooling System | Condition: | New |
---|---|---|---|
Suitable For: | Freezer | OEM: | Acceptable |
Power: | 9242 W | ||
High Light: | compressor refrigeration unit,cold room condensing unit |

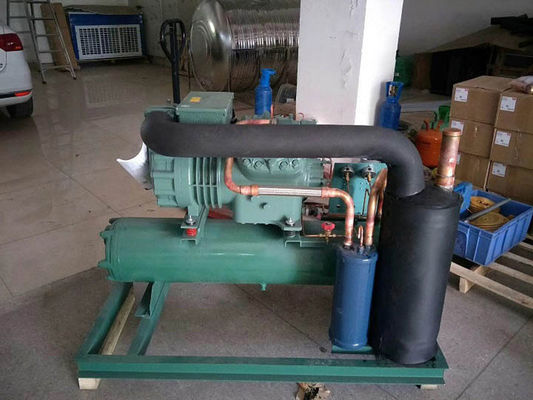

10HP Air Cooling Refrigeration Condensing Unit With 14526 W For 0 ℃ Freezer
Product Features :
1 . Application range : food processing , logistic center , supermarket , meat processing center , chain restaurant , medicine stores , seeds processing store , medical lab,biological medicine store , dairy products processing , edible fungus breeding center , Temperature range from - 5 ºC to - 23 ºC
2 . Reliable and integrated design , easy handling and installation with Brand compressors and components .
3 . High efficiency inner grooved tube heat exchanger , Removable door , easy for maintenance
4 . Anti - vibration device for big units , optional parts of fan speed controller , low noise operation .
5 . Electro statically powder coated steel sheet casing .
Water - Cooled Refrigeration Condensing Unit Technical parameters :
1 . Condenser Details :
Form | Rated Air Flow ( m3 / h ) | Connection Size |
Fin Condenser | 9000 | RC 5 / 8 - 1- 1 / 8 |
2 . Refrigerant Capacity Of Compressor :
a . Evaporating Temperature + 5 ℃
Cooling Capacity | 18936 W |
Power | 9242 W |
b. Evaporating Temperature-5 ℃
Cooling Capacity | 14526 W |
Power | 7065 W |
c . Evaporating Temperature - 12 ℃
Cooling Capacity | 12144 W |
Power | 7575 W |
3 . Coupling
Tube Coupling | 5 / 8 〞 |
Suction Coupling | 1 - 1 / 8 〞 |
4 . Overall Dimensions :
Length ( L ) | 1430 mm |
Width ( B ) | 900 mm |
Height ( H ) | 880 mm |
Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .
Note:
1 . Cooling capacity in the form is calculated when the ambient temperature is 40℃ .
2 . Configuration can be added according to customers' requirements .
