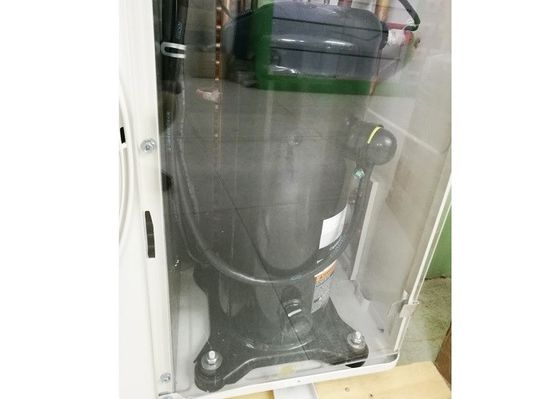

6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit

6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit

  • 6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit
  • 6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit
  • 6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit
  • 6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit
6HP Refrigeration Condensing Unit Air Cooled Stainless Steel Cold Room Chiller Unit
Product Details:
Place of Origin: China
Brand Name: Gaoxiang
Certification: ISO / CE
Model Number: GXW6CQFZG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 20 ~ 30 Days
Payment Terms: L/C , T/T
Supply Ability: 300Pcs / Month
Contact Now
Detailed Product Description
Type: Cold Storage Refrigeration Units Refrigerant: R404a
Power Suppler: 380V / 50 Hz Material: Painted Galvanized Steel Shelf
Applicable Temperature: - 5 ~ + 5 ℃ Power: 5080 W
High Light:

freezer condenser unit

,

cold room condensing unit





6HP Air - Cooled Stainless Steel Cold Room Chiller Unit For Icream Display Freezer





Product Features :



Box type condensing Side fan condensing units .
This series products feature box type structure with Copeland hermetic compressor , applicable to cold display cases , cold storage rooms , ice producers etc , with applicable temperature ranges : - 5 ~  - 10 ; - 10  ~ - 18 ;  -18 ~ - 35 . They can be used in hotels , restaurants , medicines , agricutureral , chemicals industries all other place where cold storage is needed .



Air - Cooled Refrigeration Condensing Unit Technical parameters :



1 .  Condenser Details :

Qty Of Fan ( piece )

Air Volume  ( m3 / h )

Power of Fan ( W )

2 2 * 3200 2 * 60



2 . Refrigerant Capacity Of Compressor :

a . Evaporating Temperature + 5 ℃

Cooling Capacity

16200 W

Power

5080 W



b. Evaporating Temperature - 5 ℃

Cooling Capacity 10800 W
Power 4680 W



c . Evaporating Temperature - 20 ℃

Cooling Capacity 9370 W
Power 4230 W



3 . Coupling

Tube Coupling

1 / 2 〞

Suction Coupling

3 / 4 〞



4 . Overall Dimensions :

Length ( L )

980mm

Width ( B )

410mm
Height ( H ) 1330mm



Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .



Note:

1 . Cooling capacity in the form is calculated when the ambient temperature is 32℃ .

2 . Configuration can be added according to customers requirements .
