20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room

20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room

  • 20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
  • 20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
  • 20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
  • 20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP Bitzer - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
Product Details:
Place of Origin: China
Brand Name: Gaoxiang
Certification: CE , ISO
Model Number: GXN20CBFZD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 20 ~ 30 Days
Payment Terms: L/C , T/T
Supply Ability: 150 Pcs / Month
Contact Now
Detailed Product Description
Type: Cold Room Compressor Structure: Assembled
Refrigerant: R404a Power: 17150 W
Comperssor Type: 4GE - 23Y Condenser Type: Scroll & Tube
High Light:

freezer condenser unit

,

cold room condensing unit

20HP Bitzer - 18℃ Air Cooling Refrigeration Condensing Unit For Frozen Room





Product Features :



1 . Material : Copper , aluminum , galvanized plate
2 . Aluminum foil : Hydrophilic or bare
3 . Fin type : Louver fin or flat fin or corrugated fin
4 . Copper pipe : Diameter 7mm or 8mm or 9.52mmor 12.75mm or 15.888mm , grooved or smooth tube
5 . Pitch of fins can be adjusted between 1.8- 5.8mm .
6 . Pitch of holes and pitch of rows : 25 * 21.65MM and 12.7 * 19.05MM
7 . Suitable for R134A , R22 , R404A , R407C refrigerant and so on
8 . Voltage : 220V / 1 / 50Hz and 380V / 3 / 50Hz or other type .
9 . Different alternative condensing fans available : Shaded pole or outer rotor fan motor .
10 . Did gas examination under 3.0Mpa air pressure to ensure the tightness .
11 . Widely used in refrigeration industry , cold room and other cooling system .
12 . We can supply products as per customized samples or drawing .
13 . Producing procedure : Tube bending , punching fin , expanding , digressing , drying



Water - Cooled Refrigeration Condensing Unit Technical parameters :



1 . Condenser Details :



Form Rated Air Flow ( m3 / h ) Connection Size
Fin Condenser 2*10820 RC 3 / 4 - 2 - 1 / 8



2 . Refrigerant Capacity Of Compressor :

a . Evaporating Temperature - 15 ℃

Cooling Capacity 29200 W
Power 17150 W



b. Evaporating Temperature - 25 ℃

Cooling Capacity 19100 W
Power 13050 W



c . Evaporating Temperature - 35 ℃

Cooling Capacity 11250 W
Power 9630 W



3 . Coupling

Tube Coupling 3 / 4 〞
Suction Coupling 2 - 1 / 8 〞



4 . Overall Dimensions :

Length ( L ) 1470 mm
Width ( B ) 1000 mm
Height ( H ) 1180 mm

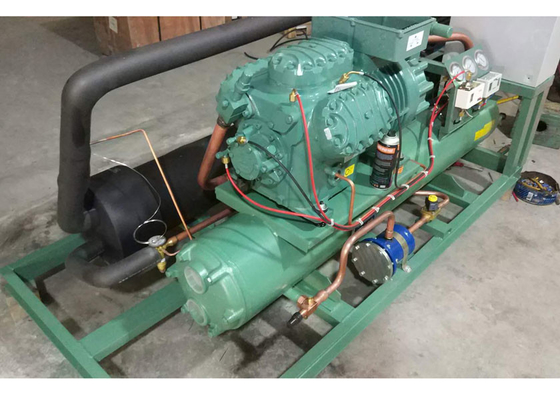

Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .



Note:

1 . Cooling capacity in the form is calculated when the ambient temperature is 40℃ .

2 . Configuration can be added according to customers' requirements .
