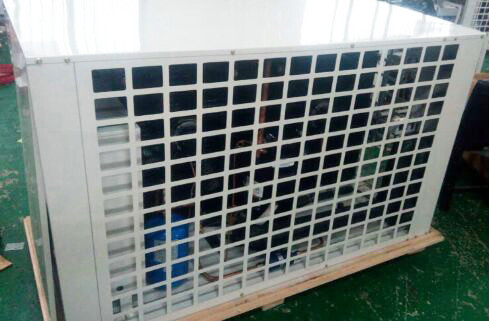

R404a 10 HP Condensing Unit , Refrigerator Compressor Unit For Fruit / Meat / Fish

R404a 10 HP Condensing Unit , Refrigerator Compressor Unit For Fruit / Meat / Fish

  • R404a 10 HP Condensing Unit , Refrigerator Compressor Unit For Fruit / Meat / Fish
  • R404a 10 HP Condensing Unit , Refrigerator Compressor Unit For Fruit / Meat / Fish
  • R404a 10 HP Condensing Unit , Refrigerator Compressor Unit For Fruit / Meat / Fish
R404a 10 HP Condensing Unit , Refrigerator Compressor Unit For Fruit / Meat / Fish
Product Details:
Place of Origin: China
Brand Name: Gaoxiang
Certification: CE , ISO
Model Number: GXN10CBFZD
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 20 ~ 25 Days
Payment Terms: L/C , T/T
Supply Ability: 100Pcs / Month
Contact Now
Detailed Product Description
Type: R404a Condensing Unit Refrigerant: R404a
Reservoir: Hongsen Compressor: Customized
Mirror Liquid: Hongsen Electric Controler: Elitech
High Light:

cold storage refrigeration units

,

compressor condenser unit

10HP Air Cooled Condensing Unit For Fruit / Meat / Fish Cold Storage Room



Products Feature :



Every Unit Configuration :

1Pc Reservoir

1Pc Solenoid Valve

1Pc Dry Filter

1Pc Mirror Liquid

1Pc High and Low Pressure Controller

2Pcs High and Low Pressure Gauge



Refrigeration equipment exclusively used in cold room , widely use in hotel , foodstuff , health , medicine , agriculture , chemical industry and so on .

Temperature arrangement :

High Temperature ( - 5 ℃ ~ + 5 ℃ )

Medium Temperature ( - 18 ℃ ~ - 20 ℃ )

Low Temperature( - 25 ℃ ~ - 30 ℃ )

Blast Freezer ( -25 ℃ ~ - 40 ℃ )



Air - Cooled Refrigeration Unit Technical parameters :



1 . Condenser Details :



Qty Of Fan ( piece ) Air Volume ( m3 / h ) Power of Fan ( W )
1 1 * 12200 1 * 800



2 . Refrigerant Capacity Of Compressor :

a. Evaporating Temperature - 5 ℃

Cooling Capacity : 21500 W

Power : 7320 W



b . Evaporating Temperature - 12 ℃

Cooling Capacity : 16550 W

Power : 6930 W



3 . Coupling

Tube Coupling 5 / 8 〞
Suction Coupling 1 - 1 / 8 〞



4 . Overall Dimensions :

Length ( L ) : 1100mm

Width ( B ) : 900mm

Height ( H ) : 980mm



5 . Mounting Dimensions :

Length ( D ) 650mm
Width ( E ) 870mm

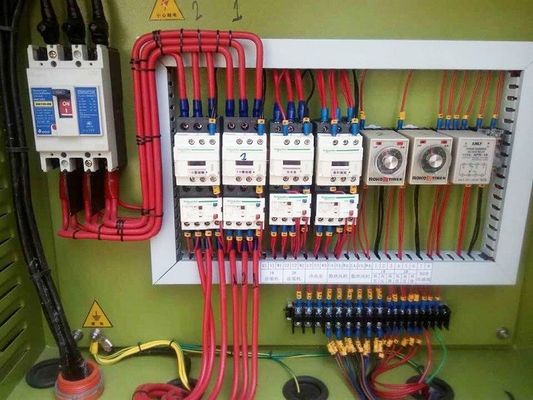

Standard configuration of units : compressor , condenser , liqid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .



Note :

1 . Cooling capacity in the form iscalculated when the ambiernt temperature is 32℃.

2 . Configuration can be added according to customers' requirements .

3 . When the compressor using refrigerant R22,and evaporating temperature lower than - 15 ℃ cylinder head fan must be installed . When the evaporating temperature below - 25 ℃ the compressor hydrojet system also must be installed .

4 . When the compressor using refrigerant R404a ,and evaporating temperature lower than - 20 ℃ cylinder head fan must be installed .
