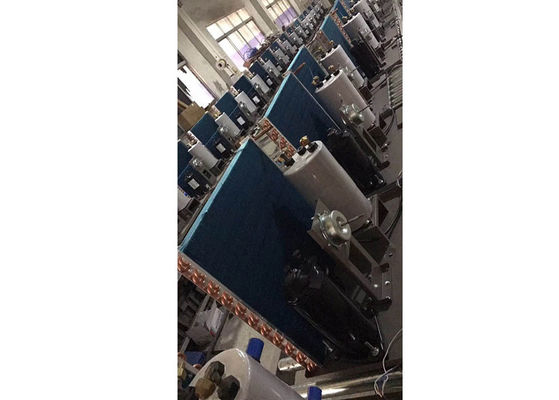

Economical Water Cooled Hermetic Condensing Unit For Vegetable Cold Storage 9 HP

Economical Water Cooled Hermetic Condensing Unit For Vegetable Cold Storage 9 HP

  • Economical Water Cooled Hermetic Condensing Unit For Vegetable Cold Storage 9 HP
  • Economical Water Cooled Hermetic Condensing Unit For Vegetable Cold Storage 9 HP
  • Economical Water Cooled Hermetic Condensing Unit For Vegetable Cold Storage 9 HP
Economical Water Cooled Hermetic Condensing Unit For Vegetable Cold Storage 9 HP
Product Details:
Place of Origin: China
Brand Name: Gaoxiang
Certification: CE / ISO
Model Number: GXN9CBZG
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 20 ~ 25 Days
Payment Terms: L/C , T/T
Supply Ability: 200Pcs / Month
Contact Now
Detailed Product Description
Product Name: Condenser Unit Mirror Liquid: Hongsen
Condenser: Hongsen Reservoir: Hongsen
Structural Form: Vertical Electric Controler: Elitech
High Light:

copeland refrigeration units

,

copeland scroll condensing units




9HP Hermetic Water Cooled Condensing Unit For Vegetable Cold Storage​


Product Specifications :

Cooling groups are produced under ISO - 9001 : 2000 quality assurance systems . Cooling equipments which are used by production are from the world ' s leading brands with advanced technology units . Mounting is made with devices which have compancotler CNC technology . Our cooling groups are produed in accordance with the European Safety Standars and have CE labels.



Evaporator :

► Air cooling and high efficient Evaporators are manufactured in two ways .
► Heat transfer surface which is placed on inflated copper tube bundeles has and aluminum wavy wings form .
► Evaporator fans have European origin with high efficiency axial fan and have an IP55 electrical protection box .
► Resistant sticks of high quality are used for defrosting . As we are aiming at getting the maximum efficiency , we have put the resistant sticks in copper tubes .
► Connector ends of fan and resistant electricity are connected with terminals in a plastic box with IP55 protection .
► It exists a system of By - Pass tray and drain hose for easily emptying the water of defrost .
► Evaporator has additionally a tray resistant and drain hose tail resistant . Thermostatic expansion valve is mounted on the inlet of the evaporator and hereby it will be forwarded .
► Evaporator RAL 9001 in ( white ) electoral powder colored is cased in galvanized steel sheet .


Other Equipment Which Are Also In The System :

► Presostats with high and low pressure protection ( combined presostats ) .
► Vibration receivers placed at the ignoring and outgoing line of the compressor .
► Safety valve liquid tank .
► Observation glass with humidity indicator .
► Humidity receiver with high capacity .
► Ball balves placed in copper pipes which protects against pressure fall .
► Oil filter with oil separator .
► High and low pressure indicators which are placed outside the units for a easy service ( manometer ) .
► Liquid holder ( vacuum acccumulator ) .





Hermetic Condensing Unit Technical parameters :



Model of unit GXN9CBZG
Applicable Temp. + 5 ~ - 15 ℃
Refrigerant R404A
Power supply 380V  50Hz
Cooling capacity & Power Evaporating Temperature + 5 ℃ Cooling Capacity 28300
Power 9550
Evaporating Temperature - 5 ℃ Cooling Capacity 20700
Power 8840
Evaporating Temperature - 12 ℃ Cooling Capacity 16150
Power 8410
Cupling Discharge Cupling 5 / 8 ''
Suction Coupling 1 - 3 / 8 ''
Discharge Cupling 5 / 8 ''
Suction Coupling 1 - 3 / 8 ''
Overall Dimensions Length ( A ) mm 1100
Width ( B ) mm 900
Height ( C ) mm 980
