Safely Running Copeland Condensing Unit , 9HP Freezer Refrigeration Unit For Cold Room

Safely Running Copeland Condensing Unit , 9HP Freezer Refrigeration Unit For Cold Room

  • Safely Running Copeland Condensing Unit , 9HP Freezer Refrigeration Unit For Cold Room
  • Safely Running Copeland Condensing Unit , 9HP Freezer Refrigeration Unit For Cold Room
  • Safely Running Copeland Condensing Unit , 9HP Freezer Refrigeration Unit For Cold Room
Safely Running Copeland Condensing Unit , 9HP Freezer Refrigeration Unit For Cold Room
Product Details:
Place of Origin: China
Brand Name: Gaoxiang
Certification: CE , ISO
Model Number: GXN9CBFZD
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 20 ~ 25 Days
Payment Terms: L/C , T/T
Supply Ability: 100Pcs / Month
Contact Now
Detailed Product Description
Products Name: Copeland Compressor Reservoir: Hongsen
TDelivery Time: 15 Days After Receiving Deposit Controller Way: Temperature Controller
Compressor Type: Copeland Usage: Cold Storage
High Light:

compressor condenser unit

,

copeland condensing unit

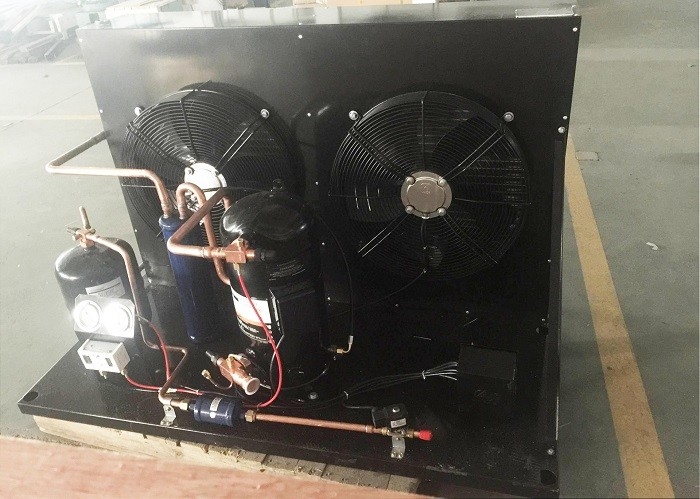

9HP Air Cooled Condensing Unit For Fruit / Meat / Fish Cold Storage Room





Products Feature :



  1. Send technical personnel to introduce domestic and foreign cold storage preservation industry standards , the general situation of the engineering characteristics and to introduce my company , for the user choice .
  2. High cost performance of investment programs provide decision - making materials .
  3. Technical scheme and specialized technical personnel , business personnel for technical communication and business disclosure . Can organize your company personnel to the company inspection guidance .
  4. Provide all kinds of products before, during, and after the whole design process of performance , features , design drawings , and various parameters , actively cooperate with public good you .
  5. Choose satisfactory builders . If not because of other factors , choose my company service for you , my company is very willing to this project .
  6. For the expensive unit to provide technical advice , so that you can purchase to advanced technology , reasonable price , reliable product performance .



Air - Cooled Refrigeration Unit Technical parameters :



Model of unit GXN9CBFZD
Applicable Temp. + 5 ~ - 20 ℃
Refrigerant R404A
Power supply 380V 50Hz
Cooling capacity & Power Evaporating Temperature - 5 ℃ Cooling Capacity 16450
Power 8190
Evaporating Temperature - 10 ℃ Cooling Capacity 11750
Power 7560
Evaporating Temperature - 20 ℃ Cooling Capacity 9670
Power 7270
Cupling Discharge Cupling 5 / 8
Suction Coupling 1 - 3 / 8
Discharge Cupling 5 / 8
Suction Coupling 1 - 3 / 8
Overall Dimensions Length ( A ) mm 1230
Width ( B ) mm 800
Height ( C ) mm 780





Fan :



Blade material Aluminum or stainless steel or Nylon
Casing material Stainless steel or Galvanized steel
Motor voltage According customer's requirement
Bearing NSK or SKF
Protection Grade IP55
Original China
