Professional team , professional design and professional services !
|Place of Origin:||China|
|Certification:||CE , ISO|
|Minimum Order Quantity:||1Set|
|Packaging Details:||Standard Export Packing|
|Delivery Time:||15 Work Days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 Set / Month|
|Product Name:||Glass Door Cold Room||PU Thickness:||50 - 200mm|
|Panel Painted:||Double Color Steel Painted||Core Material:||White|
|Cooling Agent:||R22 Or R404a||Dimension:||Customized|
modular freezer room,
cold room floor construction

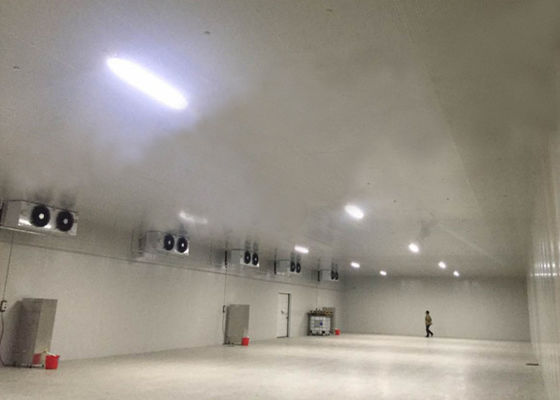

Straight Line Customized Size Display Walk In Cooler For Supermarket
Products Instruction :
As new bevarage products and new size packaging continues to be introduced , hi - volume beverage walk - ins are in great demand . American Walk In Coolers’ modular designed panel construction can modify the length , depth and height to adapt to any space requirements . American Walk in Coolers’ unique cam lock technology will make installation fast and inexpensive .
Detailed quote , specifications and drawing provided for each job to help know your total costs , freight is included on all walk - in quotes .
Cold Room Storage Application :
1 . Cooler room : 0 ~ 10 degree , for fruit , vegetable storage .
2 . Freezer room : - 10 ~ - 20 degree , for meat , fish , chicken , seafood storage .
Features of our Cold room Panel :
1 . The cold storage room panel is durable in use , color lasting & coated layer keeping .
2 . It is made with Bayer polyurethane material by high pressure foaming . The cold room panel density is up to 40kg / m³ or above .
3 . The internal cold room floor panel of our cold room is made by galvanized steel. and durable for anti - scratch.
4 . The hinged door panel of our cold room is made by heavy duty door hinge , heavy duty door lock and hydraulic door closer .
5 . The connection of our cold room panels are made with PE sealing rubber which is with high quality sealing .
6 . The connection of our cold room is with cam lock construction and excentric fasterners for tight connection and sealing of the cold room .
Room Temperature For Your Reference :
|Store Goods||Temperature Range|
|Fruit , Vegetable , Dry Food||0℃ ~ 5℃|
|Medicine , Cake , Pastry , Chemical Material||- 5℃ ~ 0℃|
|Ice Storage Room||- 5℃ ~ - 10℃|
|Fish , Meat Storage||- 18℃ ~ - 25℃|
|Deep Freezer||- 25℃ ~ - 35℃|
