Place of Origin: | China |
Brand Name: | Gaoxiang |
Certification: | CE , ISO |
Model Number: | GXB40HBZG2 |
Minimum Order Quantity: | 1 Pc |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Export Packing |
Delivery Time: | 20 ~ 30 Days |
Payment Terms: | L/C , T/T |
Supply Ability: | 30 Pcs / Month |
Product Name: | Freezer Condensing Unit | High And Low Pressure Controller: | Fengshen |
---|---|---|---|
Solenoid Valve: | Hongsen | Compressor: | Customized |
Electric Controler: | Electric Controler | Payment: | 30 %TT Deposit , 70 % Against The B / L Copy |
Highlight: | industrial refrigeration compressors,screw compressor refrigeration system |

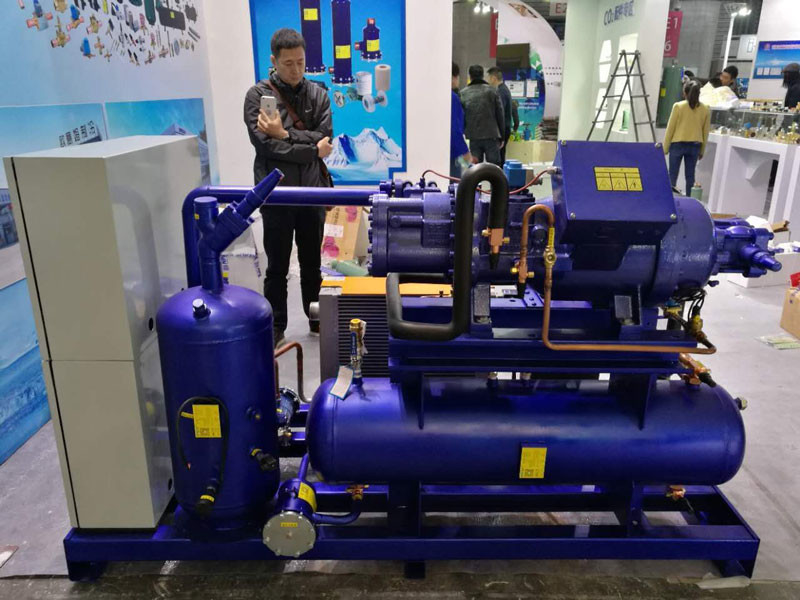

40HP Screw Compressor Unit with Air - Cooled Medium And Low Temperature
Product Feather :
1 . Heat transfer surface wihich is placed in inflated copper tube bundles has an aluminum wavy wings form
2 . It exists a system of By - Pass tray and drain hose for esily emptying the water of defrost.
3 . Low pressure control is adjustable .
4 . All products carry CE approvals .
Units Equipped With
• Screw Compressor
• External balance exanson valves
• High and low pressure control
• Automatic defrosting
• Automatic controller
• The negative refrigeration unit with liquid cooling system and condensing temperature regulating system
Screw Compressor Unit Technical parameters :
Model of unit | GXB40HBZG2 | ||
Applicable Temp. | + 10 ℃ ~ - 15 ℃ | ||
Refrigerant | R22 | ||
Power supply | 380V 50Hz | ||
Condenser | Form | High Efficient shell and tube condensor | |
Rated water flow | 24 | ||
Connection Size | 2 1 - 1 / 2 | ||
Cooling capacity & Power | Evaporating Temperature 0 ℃ | Cooling Capacity | 100.6 |
Power | 30.2 | ||
Evaporating Temperature - 5 ℃ | Cooling Capacity | 83.3 | |
Power | 28.9 | ||
Evaporating Temperature - 10 ℃ | Cooling Capacity | 68.4 | |
Power | 27.7 | ||
Cupling | Discharge Cupling | 54 | |
Suction Coupling | 28 | ||
Discharge Cupling | 54 | ||
Suction Coupling | 28 | ||
Overall Dimensions | Length ( A ) mm | 1700 | |
Width ( B ) mm | 670 | ||
Height ( C ) mm | 1100 |
