Professional team , professional design and professional services !
Place of Origin: | China |
Brand Name: | Xin Xing Yuan |
Certification: | CE / ISO |
Model Number: | 120mm |
Minimum Order Quantity: | 1 ㎡ |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Export Packing |
Delivery Time: | 15 Work Days |
Payment Terms: | L/C , T/T |
Supply Ability: | 12000 ㎡ / Month |
Product Name: | Cold Room Sandwich Panel | Purpose: | Hotel Cold Storage |
---|---|---|---|
Application Temperature: | Temperature - 25°C Or Above | Density: | 40 ~ 45 Kg / M³ |
Structure: | 3 Layers | Material: | PU , Color Steel |
High Light: | cold room sandwich panel,polyurethane insulation panels |

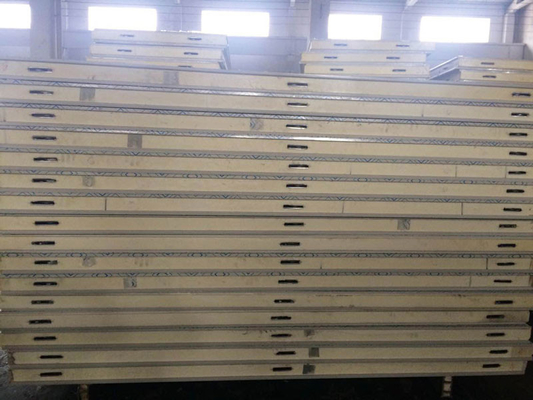

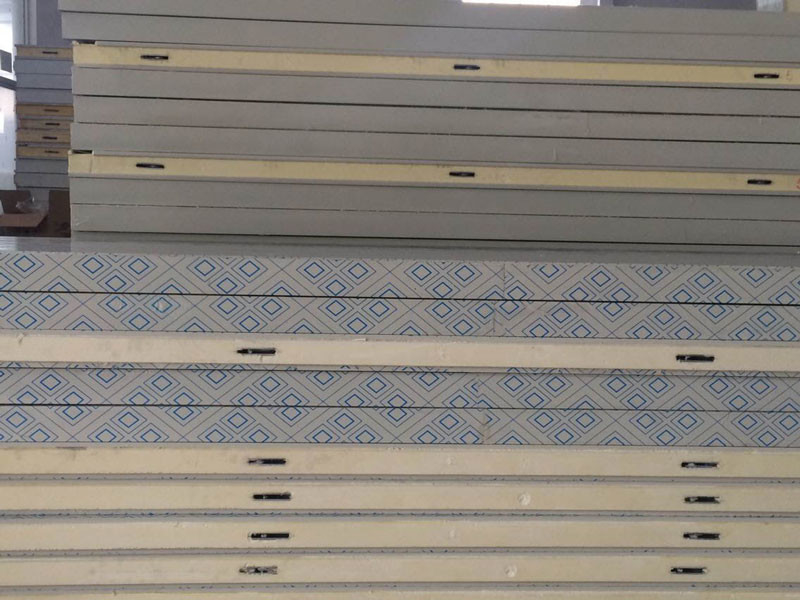

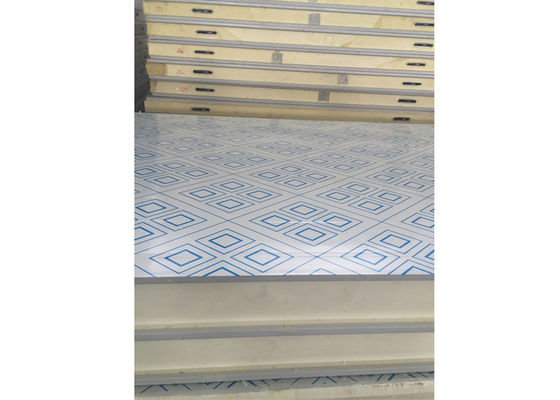

120mm High Density Cold Room Insulation Panels With Cam Lock
Products Instruction :
A sandwich panel is any structure made of three layers : a low - density core , and a thin skin - layer bonded to each side . Sandwich panels are used in applications where a combination of high structural rigidity and low weight is required .
Sandwich panels are an example of a sandwich structured composite : the strength and lightness of this technology makes it popular and widespread . Its versatility means that the panels have many applications and come in many forms : the core and skin materials can vary widely and the core may be a honeycomb or a solid filling . Enclosed panels are termed cassettes .
Applications :
One obvious application is in aircraft , where mechanical performance and weight - saving are essential . Transportation and automotive applications also exist .
In building and construction , these prefabricated products designed for use as building envelopes . They appear in industrial and office buildings , in clean and cold rooms and also in private houses , whether renovation or new - build . They combine a high - quality product with high flexibility regarding design . They generally have a good energy - efficiency and sustainability .
In packaging , applications include fluted polypropylene boards and polypropylene honeycomb boards .
Products Specification :
Density | 40 - 45kg / m³ |
The thermal conductivity | 0.019 - 0.023W / M . K |
Moisture permeability coefficient | ≤ 3.34Ng / Pa / m . s |
Water absorption | ≤ 0.5g / 100 cm² |
Enclosed rate | ≥ 97 % |
The compression strength | ≥ 220 KPa |
The bending strength | ≥ 2450KN / m² |
Oxygen index | ≥ 28 |
Fire proof | B1 |
Dimensional stability | ≤ 1 % |
Application temperature | - 50 ℃ - 150 ℃ |
Exterior Steel thickness | 0.4 - 0.7mm |
Interior steel thickness | 0.4 - 0.7mm |
Core material thickness | 40 / 50 / 60 / 75 / 100 / 120 / 150 / 200mm |
Length | Less than 11.8m |
Effective width | Wall panel : 400 - 1120mm ; Roof panel : 1000mm |
Grace finish | Embosser , small wave , big rib , flat finish |
Advantage | Heat Insulation , light weight , quick installation , waterproof , fireproof , soundproof , energy - saving , environmental friendly |
Usage | Various roofs and walls referring to the large size factory building , workshop , cold storage , villas |
