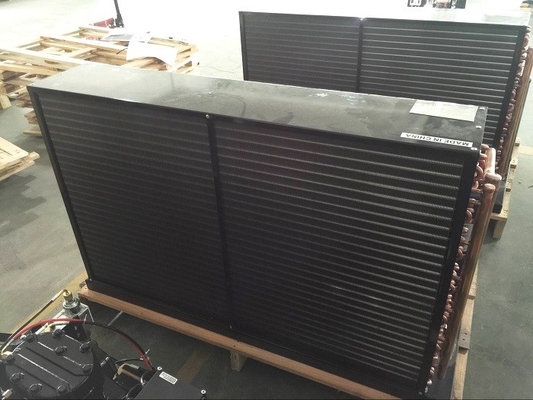

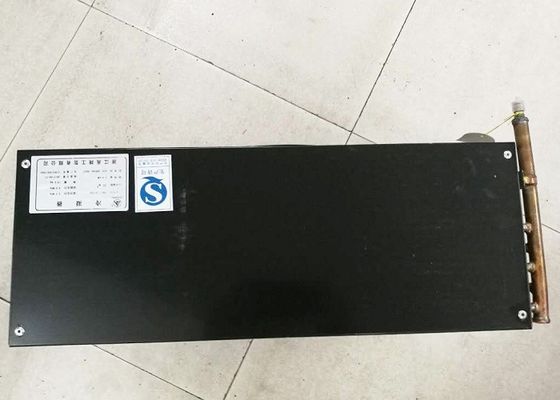

FNVB - Type Refrigerator Condenser Air Cooled For Industrial Refrigeration Unit

China FNVB - Type Refrigerator Condenser Air Cooled For Industrial Refrigeration Unit supplier
FNVB - Type Refrigerator Condenser Air Cooled For Industrial Refrigeration Unit supplier FNVB - Type Refrigerator Condenser Air Cooled For Industrial Refrigeration Unit supplier FNVB - Type Refrigerator Condenser Air Cooled For Industrial Refrigeration Unit supplier

Large Image :  FNVB - Type Refrigerator Condenser Air Cooled For Industrial Refrigeration Unit

Product Details:

Place of Origin: China
Brand Name: GaoXiang
Certification: ISO , CE , CCC
Model Number: FNV Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 15 Work Days
Supply Ability: 1000 Pcs / Day
Contact Now
Detailed Product Description
Product Name: Heat Exchanger Price: EXW Price
Quantity Of Fan Motor: Customized Power: 380 W
Material: Copper Pipe & Aluminum Fin Voltage: 380 V





FNV Type Air Cooled Condenser For 8HP Refrigeration Condensing Unit





Details Of Condenser :

  • Fin spacing : 2.5mm
  • Heat exchange area from 70 - 432
  • Copper tube diameter : 9.52mm , thickness : 0.31mm
  • Optional paint & fans
  • Plastics spraying housing,anticorrosive and durable
  • European quality & reasonable price
  • CE & ISO9001 Certificate
  • More than 20years ' experience in manufacturing refrigeration equipment



Products Feature :



● High- quality steel shell, the surface spray, corrosion - resistant , beautiful appearance ;
● The coil adopts the copper tube mis - arranging way , utilizes the mechanical expansion tube to make the copper tube and the fins closely combine , and the heat exchange effect is good ;
● products after 2.5MPa tightness test and system sewage treatment ;
● Applicable to R22 , R134a , R404a , R407c and other refrigerants ;

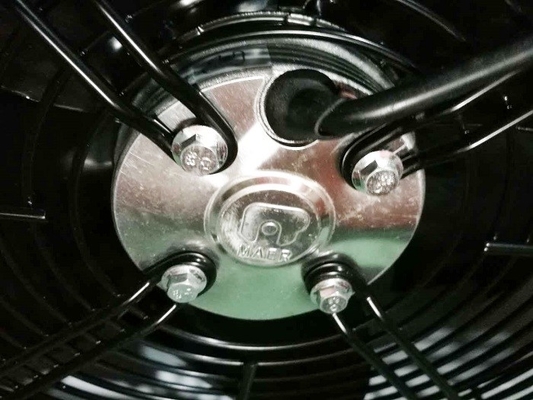

● FNH - type condenser are used gust stars , low - speed motor , with sound small , beautiful appearance ;
● High - performance heat exchange coil , clean and dry ;
● Aluminum fin punching for the " L " line extension of the film , expanded tube close contact heat transfer efficiency ;
● Condenser design width is reasonable , the distance between the blades and aluminum fins are greater than 1 / 3 the diameter of the blades to ensure that there is enough windward area of operation ;
● Shell spray processing, corrosion-resistant durable ;
● Special - purpose products , please contact the company ' s sales department .





Technical Parameters :



Technical Parameters of condensers with Unit Case
Model

Heat-

exchange △t = 15kw

Heat-

exchange area

fan Diameter of inlet tube Diameter of outlet tube Dimensions Mounting dimensions
Quantity Diameter of fan Air volume Power Voltage
W m2 N φ mm m3/h W V φmm φmm L B H D E
FNVB - 25 /72 25200 72 1 Φ 550 8487 600 380 22 16 950 900 1480 550 820
FNVB - 31 / 28 30885 87 1 Φ 600 12500 780 380 25 16 1100 1000 1480 600 820
FNVB - 39 / 110 38610 110 2 Φ 500 2 × 6246 2 ×450 380 25 16 1400 900 1480 900 820
FNVB - 46 / 130 45890 130 2 Φ 550 2 × 8487 2 ×600 380 28 19 1550 900 1480 900 820
FNVB - 54 / 155 54415 155 2 Φ 550 2 × 8487 2 ×600 380 28 19 1600 1000 1680 900 920
FNVB - 65 / 185 65490 185 2 Φ 600 2 × 12500 2 ×780 380 35 22 1700 1000 1780 1000 920
FNVB - 74 / 210 74130 210 2 Φ 630 2 × 13000 2 ×800 380 35 22 1750 1000 1850 1050 920
FNVB - 85 / 240 84720 240 2 Φ 700 2 × 15000 2 ×750 380 38 22 1900 1175 1980 1200 1100
FNVB-107 / 3 00 106500 300 2 Φ 750 2 × 19000 2 × 1100 380 38 25 2250 1175 1980 1550 1100
FNVB - 113 /  320 112960 320 2 Φ 750 2 × 19000 2 × 1100 380 38 25 2350 1175 1980 1650 1100
FNVB - 126 /  360 126360 360 3 Φ 650 3 × 13200 3 × 550 380 42 28 2650 1175 1980 1950 1100
FNVB - 141 /  400 140800 400 3 Φ 700 3 × 15000 3 × 750 380 42 28 2950 1175 1980 2250 1100
FNVB - 168 /  480 16800 480 3 Φ 750 3 × 19000 3 × 1100 380 42 28 3400 1175 1980 2700 1100







Note : four - pole external rotor fans shall be used for the heat - exchange area less than 210 ㎡  .  And six - pole axial flow fans shall be used for the heat - exchange area more than 240 ㎡
