Customized Walk In Cooler Condenser , Outside Condenser Unit For Refrigeration System

Customized Walk In Cooler Use Air Cooled Condenser For Refrigeration System

Products Instructions :

Air Cooled Condenser condensate exhaust steam from the turbine and it return the condensate to the boiler . That is in power plants steam is used to rotate the turbine . After the application , the steam will be a waste one . So as an economical part of operation , the steam is re condensate to water and then re - used for boiler feed water.

The Air Cooled condenser is made of modules arranged in parallel rows as like Air Cooled Heat Exchange . The module contains number of Finned Tube bundle . The axial flow forced draft fan is fixed in the module and forces the atmospheric cooling air across the Condensate area of the fin tubes .

The scope of supply of an Air Cooled Condenser will include all turnkey job from supporting structure , steam ducting from the steam turbine interface and all auxiliaries like pumps , duct drain tanks , instrumentation and air evacuation units related piping works .

Details Of Condenser :

• Fin spacing : 2.5mm
• Heat exchange area from 70-432

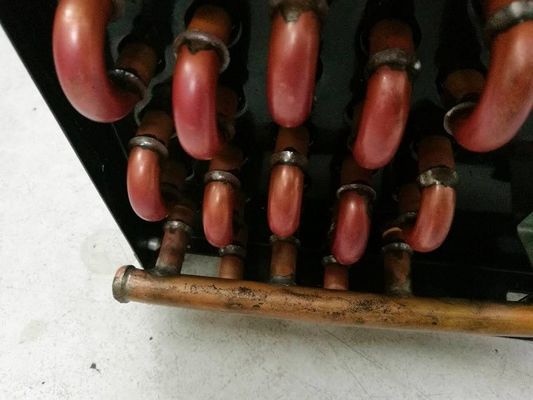

• Copper tube diameter : 9.52mm , thickness : 0.31mm
• Optional paint & fans
• Plastics spraying housing , anticorrosive and durable
• European quality & reasonable price
• CE & ISO9001 Certificate
