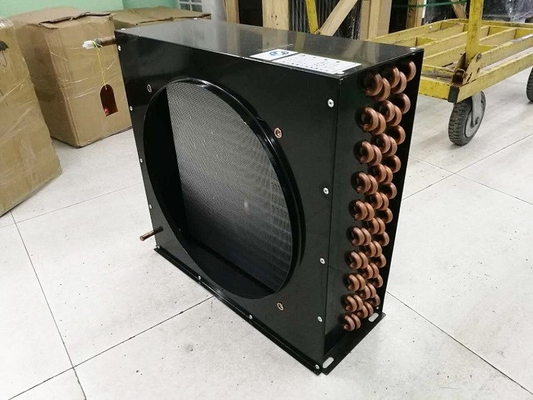

High Performance Air Cooled Condenser Heat Exchanger FNV Type For Cold Room

China High Performance Air Cooled Condenser Heat Exchanger FNV Type For Cold Room supplier
High Performance Air Cooled Condenser Heat Exchanger FNV Type For Cold Room supplier High Performance Air Cooled Condenser Heat Exchanger FNV Type For Cold Room supplier High Performance Air Cooled Condenser Heat Exchanger FNV Type For Cold Room supplier

Large Image :  High Performance Air Cooled Condenser Heat Exchanger FNV Type For Cold Room

Product Details:

Place of Origin: China
Brand Name: GaoXiang
Certification: ISO , CE , CCC
Model Number: FNV Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 1000 Pcs / Day
Contact Now
Detailed Product Description
Product Name: Heat Exchanger Price: EXW Price
Quantity Of Fan Motor: Customized Power: 380 W
Material: Copper Pipe & Aluminum Fin Voltage: 380 V

FN Series Cold Room Use Air Cooled Condenser For Refrigeration System





Condenser Description :



FN seroes air - cooled condenser is a kind of special in the open air , semi - closed and totally enclosed compressor condenser . Heat disspation area by 3 , 1380 ㎡ . FN type air cooling condenser FNH and FNV two series . FNH with horizontal air supply type , FNV for vertical air supply type ; FNH model suitable for small and medium - sized close partly or fully enclosed compressor , FNV type is suitable for large amount of cold compressor . FNV type is suitable for large amount of cold compressor . Condenser separately installed on the out outside , and the compressor piping connections between in lieu of water cooled condenser .





Products Feature :

  1. Installing of condenser is not confined by area , it only needs small area .
  2. Entire installation,beautiful outlook design , protect well , can avoid collision damage .
  3. Condensers have double arrange , avoid heat loss during the air transform .
  4. The units have good protect system inside , good for reducing maintance .
  5. Use axial fan motor , low noise , power lose and large in air flow .
  6. Large power of compressors driver quantity of cold .
  7. Well construction , convenient packing and transport .



Technical Parameters :



Technical parameters of industrial condensers
Model

Heat -

exchange △t = 15kw

Heat-

exchange area

fan Diameter of inlet tube Diameter of outlet tube Dimensions Mounting dimensions
Quantity Diameter of fan Air volume Power Voltage
W m2 N φmm m3/h W V Φ mm Φ mm L B H D E
FNV - 26 / 72 25890 72 1 4D550 8487 600 380 22 16 950 900 880 870 700
FNV - 31 / 87 31320 87 1 4D600 10820 780 380 25 16 1100 1000 880 1020 700
FNV - 40 / 110 39800 110 2 4D500 2×6246 2×450 380 25 16 1400 900 880 1320 700
FNV - 47 / 130 46800 130 2 4D550 2×8487 2×600 380 28 19 1550 900 880 1470 700
FNV - 56 / 155 55800 155 2 4D500 2×8487 2×600 380 28 19 1600 1000 980 1520 800
FNV - 67 / 185 66700 185 2 4D600 2×12500 2×780 380 28 22 1700 1000 1080 1620 800
FNV - 76 / 210 75680 210 2 4D630 2×13000 2×800 380 32 22 1750 1000 1180 1670 800
FNV - 86 / 240 86420 240 2 φ700 2×15000 2×750 380 32 22 1900 1175 1260 1820 975
FNV - 108 / 300 10800 300 2 φ750 2×19000 2×1100 380 35 25 2250 1175 1260 2170 975
FNV - 115 / 320 11520 320 2 φ750 2×19000 2×1100 380 38 25 2350 1175 1260 2270 975
FNV - 130 / 360 129600 360 3 φ650 3×13200 3×550 380 42 28 2650 1175 1260 2570 975
FNV - 144 / 400 144000 400 3 φ700 3×15000 3×750 380 42 28 2950 1175 1260 2870 975
FNV - 173 / 480 172800 480 3 φ750 3×19000 3×1100 380 54 28 3400 1175 1260 3320 975



Note : four - pole external rotor fans shall be used for the heat - exchange area less than 210 ㎡ .  And six - pole axial flow fans shall be used for the heat - exchange area more than 240 ㎡ .
