Professional team , professional design and professional services !
|Place of Origin:||China|
|Certification:||ISO , CE , CCC|
|Model Number:||FNH - 0.7 / 2|
|Minimum Order Quantity:||1 Pcs|
|Packaging Details:||Standard Export Packing|
|Delivery Time:||15 Work Days|
|Supply Ability:||1000 Pcs / Day|
|Product Name:||Heat Exchanger||Condensing Area:||2 M²|
|Quantity Of Fan Motor:||1||Power:||35 W|
|Material:||Copper Pipe & Aluminum Fin||Form:||Refrigerant Control|
outside condenser unit
R404a Refrigerant Air - Cooled Condenser For Industrial Evaporative
Condenser Features :
Air - cooled condenser is a radiator in freon fefrigerating equipment , which used in air cooling , air-cooling condensers has 4 types,including FNH type , FNV type , FNVB type and GP type . FNH type makes use of lateral air blows ; FNV type and FNVB type is top air blows ; GP type is horizontal air blows .
Heat Removal Quantity △t = 15k ( kw )
|Diameter Of Fan Blade||200 φmm|
|Total Air Volume||430 m³ / h|
This company can design and proudce special non-standard products for customers .
FNH Type Air - Cooled Condenser Serises Product Fratures As Follows :
1 . The shell is made of quality steel plate ; Sprayed plastic surface is anti-corrosive,and its appearance is handsome .

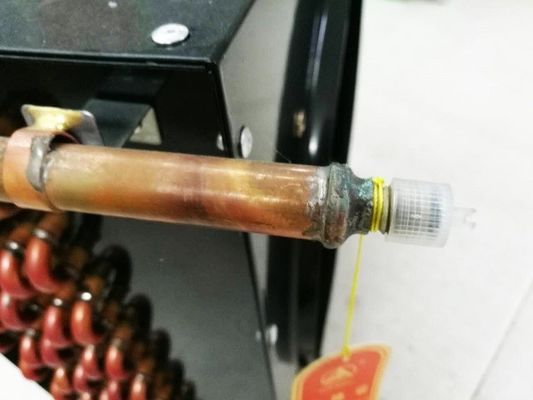

2 . Coiled pipes are mechanical expanding tubes in staggered arrangement ; Therefore , copper tubes and fins are combined closely , and ensure good effect of heat exchange .
3 . This product has passed 2.5mpa air - tightness test and treatment of system waste .
4 . It is applicable to such coolants as R22 , R134a , R404a , and R407c etc .
5 . All FNH type condensers use motors that boast large air volume and low rotating speed , therefore , the condensers have low noise and nice appearance , and can be widely used in those refrigerating equipment that have strict requirements of noise .
6 . FNV type condensers have low noise motors , large windward sides and favorable heat exchanging effect . They are widely used in relatively large condensing units .
FNH Type Condenser Size Parameters :
Copper tubes ( Row number * Number of rings : N * W ) : 2 * 4
Dimensions : L= 250mm ; B = 120mm ; H = 240mm
Mounting Dimensions : D = 275mm ; E = 70mm ; C = 9mm
Coupling Dimensions : A = 200mm ; K = 24mm
Dimensions Of Fan Arrangement : G = 115mm ; P = 124mm
